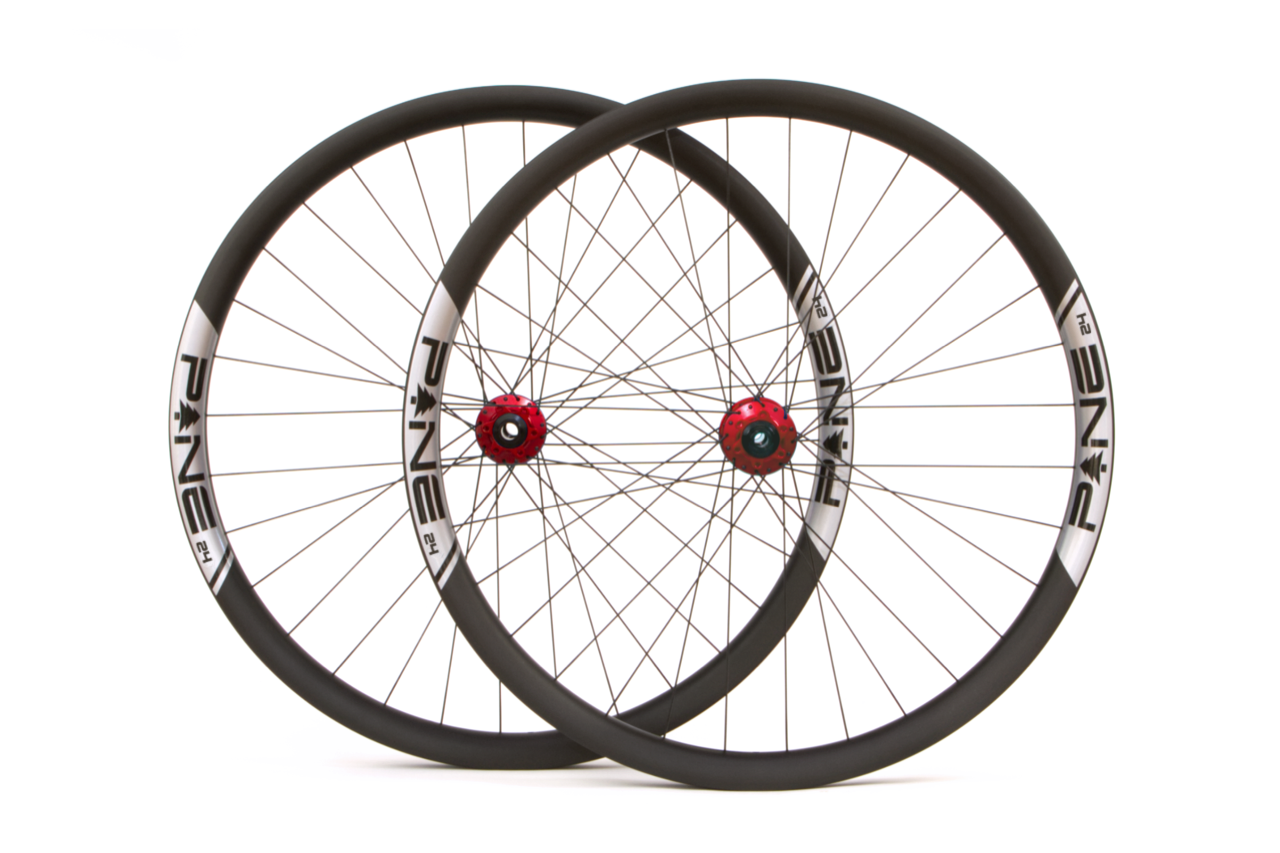

PINE 24 MTB wheelset

€1 880.00
In stock
Product Details

PINE 24 Carbon Wheelset

XC wheelset without limitations

Our lightest MTB XC wheelset is featuring 24mm inner wide U shape rim, laced with 28 spokes and internal aluminum nipples, this is truly XC wheel-set without any compromise, Ready to Race!

Featuring all of the advantages of the Industry Nine Hydra hub mechanism-low drag, low weight, and the ultimate in axle compatibility- tied into a traditional, "Classic" hub. Industry Nine Classic hubs are the solution for any rider seeking an approachable flanged hub to build into a no-compromise, high-performance wheel-set.

Hydra Classic mountain hubs are loaded with features every rider will appreciate such as revolutionary 0.52° engagement, generously low weights and an intuitive layout that can be serviced without any proprietary tools. Industry Nine hubs a universe of standard options in terms of axle fit, spoke hole drillings, disc rotor mounting, freehub bodies, and colors.

All our wheel sets are laced on Industry Nine Hydra Classic Hubs using DT Swiss Competition or SAPIM CX-Ray Spokes with internal aluminum nipples.

Industry Nine UST Aluminum 4g valves are available in 12 colours!



set: 1384g
front: 626g
rear: 758g

24mm inner width
30mm outer width
Carbon rims T700, Hookles, Tubeless ready, UD Finish
Front Axles:

QR, 9thru, 12x100mm, 15x100mm, Boost 15x110, Boost 20x110mm

Rear Axles:

QR 135, 10x135mm, 12x135mm, 12x142mm and 12x148mm


Industry Nine Hydra Classic 6 Bolt or Center Lock
11 colors


DT SWISS Competition 2.0/1.8/2.0 Black or
Sapim CX Ray 2.0/0.9/2.2/2 Bladed Black


Shimano HG, Micro Spline or SRAM XD (Alloy or Steel)
Groundbreaking 690 P.O.E. Hydra Freehub body engages every 0.52 degrees yeilding telepathic control.

Spoke Count:


Tire Width:

2.1" - 2.5"

Wheels size:


Rider Weight: Recommended 118kg/260lbs Purpose: XC Marathon

Profile rim PINE

Limited 5 Year Warranty on Wheels and Accessories.

5 years warranty

Delivery is 3 to 4 weeks!

We are working our bottoms out, to get your wheels on your bike. Please be patient, it´s coming in few weeks.
